Application:
This series pumps are single stage centrifugal mud pump. They are applied to barite & mineral oil based drilling mud, bentonite, salt water sully, chemical industry etc. Thick, strong, concentric casing with replaceable casing wear pad provides extended life over conventional volute designs. Wide semi-impeller creates lower axial thrust for improved bearing life, and semi-impeller design reduces the concentration of solids behind the impeller, extending the life of the mechinacal seal or packing and struffing box. There are two mechanical seal alternative, single or double mechanical seal. This struffing box can be configured for flush lines.

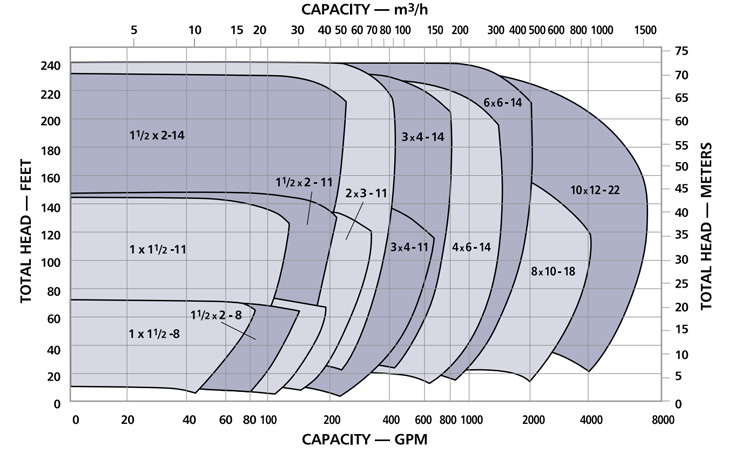

Performance:
Capacity：～1600m3/h
Head：～70m
Medium Temperature（T）： T＜+121℃
Pressure：～876kPa
Spherical Solid Diameter(D): D＜57mm
